OD1	+/- OD1	OD2	+/- OD2	OL	+/- OL	L1	+/- L1	TT	Price	Attachments
1/8"	+0/-0.005"	3/8"	+0/-0.020"	3.66"	+/-1/16"	1/2"	+/-1/16"	1/4-28 UNF	Contact Us	N/A
1/8"	+0/-0.005"	3/8"	+0/-0.020"	3.85"	+/-1/16"	1/2"	+/-1/16"	1/4-28 UNF	Contact Us	N/A
1/8"	+0/-0.005"	3/8"	+0/-0.020"	4.25"	+/-1/16"	1/2"	+/-1/16"	1/4-28 UNF	Contact Us	N/A
1/8"	+0/-0.005"	3/8"	+0/-0.020"	4.625"	+/-1/16"	1/2"	+/-1/16"	1/4-28 UNF	Contact Us	N/A
1/8"	+0/-0.005"	3/8"	+0/-0.020"	5.00"	+/-1/16"	1/2"	+/-1/16"	1/4-28 UNF	Contact Us	N/A
3/16"	+0/-0.005"	3/8"	+0/-0.020"	3.25"	+/-1/16"	1/2"	+/-1/16"	1/4-28 UNF	Contact Us	N/A
3/16"	+0/-0.005"	3/8"	+0/-0.020"	3.625"	+/-1/16"	1/2"	+/-1/16"	1/4-28 UNF	Contact Us	N/A
3/16"	+0/-0.005"	3/8"	+0/-0.020"	4.00"	+/-1/16"	1/2"	+/-1/16"	1/4-28 UNF	Contact Us	N/A
3/16"	+0/-0.005"	3/8"	+0/-0.020"	5.00"	+/-1/16"	1/2"	+/-1/16"	1/4-28 UNF	Contact Us	N/A
3/16"	+0/-0.005"	3/8"	+0/-0.020"	5.50"	+/-1/16"	1/2"	+/-1/16"	1/4-28 UNF*	Contact Us	N/A
3/16"	+0/-0.005"	3/8"	+0/-0.020"	6.00"	+/-1/16"	1/2"	+/-1/16"	1/4-28 UNF*	Contact Us	N/A
3/16"	+0/-0.005"	3/8"	+0/-0.020"	6.25"	+/-1/16"	1/2"	+/-1/16"	1/4-28 UNF*	Contact Us	N/A
3/16"	+0/-0.005"	3/8"	+0/-0.020"	7.00"	+/-1/16"	1/2"	+/-1/16"	1/4-28 UNF*	Contact Us	N/A
3/16"	+0/-0.005"	3/8"	+0/-0.020"	7.50"	+/-1/16"	1/2"	+/-1/16"	1/4-28 UNF*	Contact Us	N/A
1/8", 4mm, 3/16"	+0/-0.005"	3/8"	+0/-0.020"	Custom	+/-1/16"	3/8", 1/2"	+/-1/16"	1/4-28 UNF*	Contact Us	Custom Page

E-Mail Us:

sales@dieco-techmfg.com

diecotechmfg@rogers.com

* Also available in 5/16-24 UNF x 3/8" long threads

| Step-Tube Blow Needles

Product Specifications & Attachments:

How to Order:

Step-Tube BLOW NEEDLES

Products

Additional Information:

Dimensions:

Description:

Online Submission:

Click 'contact us' above, for an online submission directly through our website.

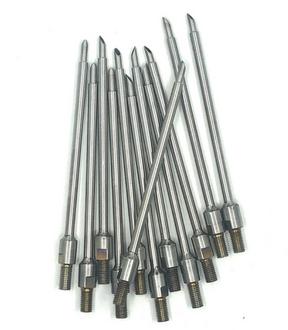

304-series stainless steel blow needles are designed for blow molding manufacturing processes to form plastic parts for end-users. These needles are designed with an angled-tip, at the mouth of the needle to help pierce plastic, and thru-holes near tube tip for compressed air flow. These can be used in conjunction with our stainless steel and/or brass blow needle cylinders.

Product: Step-Tube Blow Needle

Related Products:

Manufacturing Services & Industrial Supplies

Call Us:

T: 905.791.0377 (Main)

D: 416.728.6889 (Sales)

D: 647.998.6576 (Sales)

8 Automatic Rd., Unit 9A Brampton, ON Canada L6S 5N4

Tel: 905.791.0377 | sales@dieco-techmfg.com

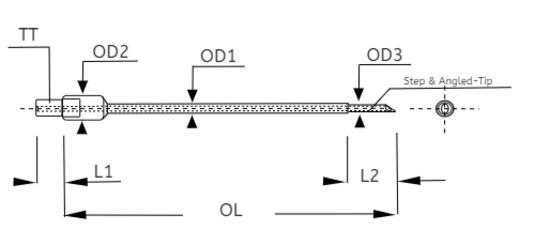

OL - Overall Length L1, L2 - Length

OD1, OD2, OD3 - Outer Diameter Material: 304 Stainless Steel

TT - Thread Type Hardness: N/A

Dimensions: Imperial
