Shift Date Stamps (0,1,2,3)

Dimensions:

Additional Information:

Item #:	D1	+/- D1	L	+/- L	D2	+/- D2	Numbering	Price	Attachments
11151058R0	6 mm	+/-0.1 mm	8 mm	+/-0.1 mm	3.1 mm	+/-0.1 mm	0 1 2 3	Contact Us	N/A
11151059R0	8 mm	+/-0.1 mm	10 mm	+/-0.1 mm	4.4 mm	+/-0.1 mm	0 1 2 3	Contact Us	N/A
11151060R0	10 mm	+/-0.1 mm	12 mm	+/-0.1 mm	5.2 mm	+/-0.1 mm	0 1 2 3	Contact Us	N/A
1115102R0	12 mm	+/-0.1 mm	14 mm	+/-0.1 mm	6.2 mm	+/-0.1 mm	0 1 2 3	Contact Us	N/A
1115103R1	16 mm	+/-0.1 mm	14 mm	+/-0.1 mm	8.2 mm	+/-0.1 mm	0 1 2 3	Contact Us	N/A
1115104R0	20 mm	+/-0.1 mm	16 mm	+/-0.1 mm	11 mm	+/-0.1 mm	0 1 2 3	Contact Us	N/A
CustomDC1R0	Custom	+/-0.1 mm	Custom	+/-0.1 mm	Custom	+/-0.1 mm	Custom	Contact Us	N/A

E-Mail Us Directly:

sales@dieco-techmfg.com

diecotechmfg@rogers.com

| Shift Date Stamps

Online Submission:

Request a quote by filling out the form below. A representative will get back to you shortly with a quote. Once you're ready to order, you can place the order directly via e-mail.

Products

Product Specifications & Attachments:

Call Us:

T: 905.791.0377 (Main)

D: 416.728.6889 (Sales)

D: 647.998.6576 (Sales)

|M ould Supplies and Component Parts

How to Order or Request a Quote:

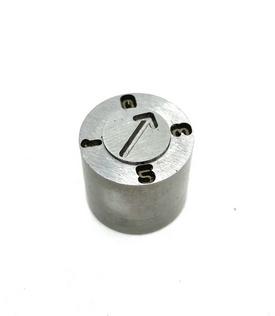

Shift stamps are used to stamp plastic production parts with a coding system to track production batches. These stamps come fully-assembled, with compression springs, and are engraved with the numbers 0,1,2 and 3 to correspond to production shift schedules. Inner inserts come with an arrow marking that can be turned using a flat-head screw driver. Inner inserts can be easily replaced for further cost reductions.

Description:

L - Overall Length Material: Tool/Alloy Steel

D1 - Outer Diameter Base Hardness: Hardened (HRC N/A Online)

D2 - Outer Diameter Insert Dimensions: Metric

Engraving depth and letter sizes vary based on overall size.

Product: Date Stamps - Shift Code
