 | Chiseled-Tip Blow Needles

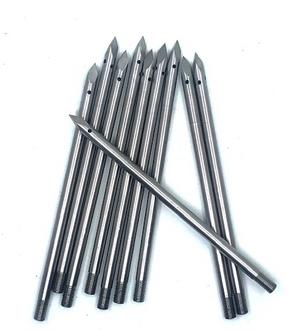

304-series stainless steel blow needles are designed for blow molding manufacturing processes to form plastic parts for end-users. These needles are designed with a chiseled-tip to help pierce thicker plastic more effectively and control where compressed air passes. These can be used in conjunction with our stainless steel and/or brass blow needle cylinders.

 Item #:OD+/- ODOL+/- OLL1+/- L1
L2+/- L2TTPriceAttachments

1/4"+0/-0.005"2.50"+/-1/16"0.625"+/-1/32"
0.625"+/-1/16"
1/4-28 UNFContact UsN/A

1/4"
+0/-0.005"
3.00"
+/-1/16"
0.625"
+/-1/32"
0.625"
+/-1/16"1/4-28 UNF
Contact Us
N/A

1/4"
+0/-0.005"
3.50"+/-1/16"
0.625"
+/-1/32"
0.625"
+/-1/16"
1/4-28 UNF
Contact Us
N/A

1/4"
+0/-0.005"
3.75"+/-1/16"
0.625"
+/-1/32"
0.625"
+/-1/16"1/4-28 UNF
Contact Us
N/A

1/4"
+0/-0.005"
4.00"+/-1/16"
0.625"
+/-1/32"
0.625"+/-1/16"1/4-28 UNFContact Us
N/A

1/4"
+0/-0.005"
4.50"+/-1/16"
0.625"
+/-1/32"
0.625"+/-1/16"1/4-28 UNF
Contact Us
N/A

1/4"
+0/-0.005"
5.00"+/-1/16"
0.625"
+/-1/32"
0.625"+/-1/16"1/4-28 UNF
Contact Us
N/A

1/4"
+0/-0.005"
5.50"+/-1/16"
0.625"
+/-1/32"
0.625"+/-1/16"
1/4-28 UNF
Contact Us
N/A

1/4"
+0/-0.005"
6.00"+/-1/16"
0.625"
+/-1/32"0.625"+/-1/16"
1/4-28 UNF
Contact Us
N/A

1/4"
+0/-0.005"
6.25"+/-1/16"
0.625"
+/-1/32"
0.625"+/-1/16"1/4-28 UNF
Contact Us
N/A

1/4"
+0/-0.005"
6.50"+/-1/16"0.625"
+/-1/32"0.625"+/-1/16"
1/4-28 UNF
Contact Us
N/A

1/4"
+0/-0.005"
7.00"+/-1/16"
0.625"
+/-1/32"
0.625"
+/-1/16"
1/4-28 UNF
Contact UsN/A

1/4"
+0/-0.005"
7.125"+/-1/16"
0.625"
+/-1/32"
0.625"
+/-1/16"
1/4-28 UNF
Contact UsN/A

1/4"
+0/-0.005"7.50"+/-1/16"
0.625"
+/-1/32"0.625"
+/-1/16"
1/4-28 UNF
Contact Us
N/A

1/4"
+0/-0.005"
7.625"+/-1/16"0.625"
+/-1/32"
0.625"
+/-1/16"
1/4-28 UNF
Contact UsN/A

1/4"
+0/-0.005"
7.875"+/-1/16"
0.625"
+/-1/32"
0.625"
+/-1/16"
1/4-28 UNFContact Us
N/A

1/4"
+0/-0.005"
8.00"+/-1/16"
0.625"
+/-1/32"
0.625"
+/-1/16"
1/4-28 UNF
Contact Us
N/A

1/4"
+0/-0.005"
8.50"+/-1/16"
0.625"
+/-1/32"
0.625"
+/-1/16"
1/4-28 UNFContact Us
N/A

1/4"
+0/-0.005"
9.00"+/-1/16"
0.625"
+/-1/32"
0.625"+/-1/16"
1/4-28 UNF
Contact Us
N/A

1/4"
+0/-0.005"
9.50"+/-1/16"
0.625"
+/-1/32"
0.625"
+/-1/16"
1/4-28 UNF
Contact Us
N/A

1/4"
+0/-0.005"
10.00"+/-1/16"
0.625"
+/-1/32"
0.625"
+/-1/16"
1/4-28 UNF
Contact Us
N/A

1/4"
+0/-0.005"
13.875"+/-1/16"
0.625"
+/-1/32"
0.625"
+/-1/16"
1/4-28 UNFContact Us
N/A

1/4"+0/-0.005"Custom+/-1/16"
Custom+/-1/16"
Custom+/-1/16"
1/4-28 UNFContact Us
Custom Page

Product Specifications & Attachments:

Online Submission:

Request a quote by filling out the form below. A representative will get back to you shortly with a quote. Once you're ready to order, you can place the order directly via e-mail.


 |Mould Supplies and Component Parts

Dimensions:

Call Us:

T: 905.791.0377 (Main)

D: 416.728.6889 (Sales)

​D: 647.998.6576 (Sales)


How to Order:

 | 300-SERIES SS Blow Needles

CHISELED-TIP BLOW NEEDLES

Additional Information:

E-Mail Us Directly:

sales@dieco-techmfg.com

diecotechmfg@rogers.com

Product: Chiseled-Tip Blow Needle

Related Products:

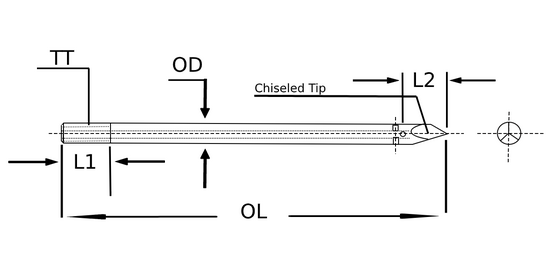

  OL - Overall Length                               L1, L2 - Length

 OD - Outer Diameter                            Material: 304 Stainless Steel

 TT - Thread Type                                   Hardness: N/A

                                                                 Dimensions: Imperial
